BRENDON
MOBILE 3500 PSI
35KPE+ES:
Petrol 3500PSI / 240 BAR @ 15 Litres Per Minute
BRENDON
MOBILE 3500 PSI
35KPE+ES:
Petrol 3500 PSI 240 BAR @ 15 Litres Per Minute
30KLN+ES:
Diesel 3000 PSI 207 BAR @ 15 Litres Per Minute
>
>
>
Brendon Engine Mobiles

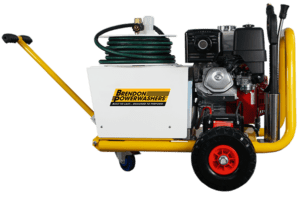

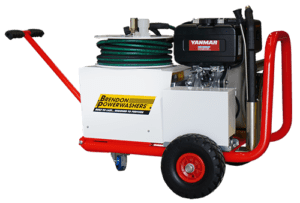

The Brendon 35KPE, 35KPE+ES & 30KLN+ES mobile diesel & petrol Powerwasher have been designed for the toughest of industrial applications. Choose between a petrol Honda GX390 with or without electric start, or a diesel Yanmar L100 with electric start.
Â
Applications
- Rental Industry
- Plant & Machinery
- Landscaping
- Factories
- Agricultural
- Facilities Management
Models Specifications
| Model: | 35KPE+ES / 35KPE | Â |
|---|---|---|
| Max Pressure: | 240 Bar / 3500 PSI | Â |
| Volume: | 3.3 GPM / 15 LPM | Â |
| Pump: | Heavy duty triple piston CAT pump | Â |
| Engine: | Petrol Honda GX390 electric & pull start with oil alert. (35KPE Pull start only) | Â |
| Drive: | Triple V-belt drive | Â |
| Supply: | Direct or suction feed | Â |
| Suction Hose: | 4.5m of 3/4″ suction hose fitted with a Brendon stainless steel suction strainer |  |
| Delivery Hose: | 15m of 3/8″ double braided hose fitted with couplings |  |
| Weight & Dimensions:Â Â | 133kg | 1050mm x 700mm x 800mm (LxWxH) | Â |
| Â | Â | Â |
| Â | Â | Â |
| Model: | 30KLN+ES | Â |
|---|---|---|
| Max Pressure: | Â 207 Bar / 3000 PSI | Â |
| Volume: | 3.3 GPM / 15 LPM | Â |
| Pump: | Heavy duty triple piston CAT pump | Â |
| Engine: | Â Diesel Yanmar L100 push button electric start with recoil start backup | Â |
| Drive: | Triple V-belt drive | Â |
| Supply: | Direct or suction feed | Â |
| Suction Hose: | 4.5m of 3/4″ suction hose fitted with a Brendon stainless steel suction strainer |  |
| Delivery Hose: | 15m of 3/8″ double braided hose fitted with couplings |  |
| Weight & Dimensions:Â Â | 150kg | 1100mm x 750mm x 800mm (LxWxH) | Â |
| Â | Â | Â |
| SPEC SHEETSÂ Â Â Â /Â Â Â MANUALS | Â | Â | Â |
|---|
Triple Piston CAT Pump
Heavy duty triple piston CAT pump.
Live Hose Reel
Unique Brendon live hose reel, with stainless steel reel centre shaft, and rotary union.
Protective Canopy
Steel frame canopy with UV Polypropylene cover to protect pump and valves from the elements.
Tubular Chassis
Robust protective tubular frame is available in a choice of colours.
Industrial Drive System
Heavy duty 2:1 V-belt drive enabling the pump to run slow, Improving durability and suction.
Direct or Suction Feed
4.5m of suction hose fitted with a Brendon protected stainless steel suction strainer for excellent water suction capability.
Adjustable Pressure
Simple throttle control for pressure regulation. Panel mounted gauge to monitor pressure reading.
Detergent System
Canopy mounted detergent valve to enable a metered detergent system.
Thermo Sensor Valve
Protects the pump from over heating when left for periods without operating the trigger.
Electric Start
30KLN+ES – Push button start
35KPE+ES – Key ignition start
Stainless Steel Lance
Interchangeable heavy duty stainless steel trigger and lance, with optional turbo nozzle.
Portability
Solid puncture proof wheels with a heavy duty swivel jockey wheel to enable easy mobility.
